Stop Ghosting & Data Loss: The Ultimate Custom LVDS Display Cable Guide

The Hidden Saboteur in Your Premium Equipment

You’ve spent months, perhaps years, perfecting the hardware and software of your next-generation display. The panel resolution is stunning, the processor is lightning-fast, and the enclosure design is sleek. But then, during the final validation phase or shortly after mass production begins, disaster strikes. The screen starts flickering. Ghosting artifacts appear across the interface. Suddenly, a premium product looks like a cheap knockoff, leading to massive customer returns and a damaged brand reputation.

The culprit? It’s rarely the panel or the software. More often than not, it’s the wire harness connecting them. When engineers treat LVDS (Low-Voltage Differential Signaling) cables as an afterthought, opting for cheap, off-the-shelf alternatives, they invite Electromagnetic Interference (EMI) and signal degradation that can silently ruin an entire system. It’s time to stop letting subpar wiring sabotage your hard work.

Why “Standard” LVDS Cables Are a Ticking Time Bomb

LVDS technology is the backbone of modern high-speed displays, but it is notoriously sensitive. Unlike simple power cables, LVDS relies on precise differential signaling to transmit data at high speeds with low power. This means the physical construction of the cable matters immensely.

Cheap manufacturers often cut corners by using standard, loosely twisted pairs and inadequate shielding. In the electrically noisy environment of modern electronics (surrounded by power supplies, motors, and processors), these unshielded cables act like antennas, picking up EMI. This interference corrupts the data stream, resulting in screen flickering, color banding, and complete data loss. If your custom cable assembly doesn’t strictly control characteristic impedance and minimize signal attenuation, your display is destined to fail.

Engineering Zero-Tolerance Signal Integrity

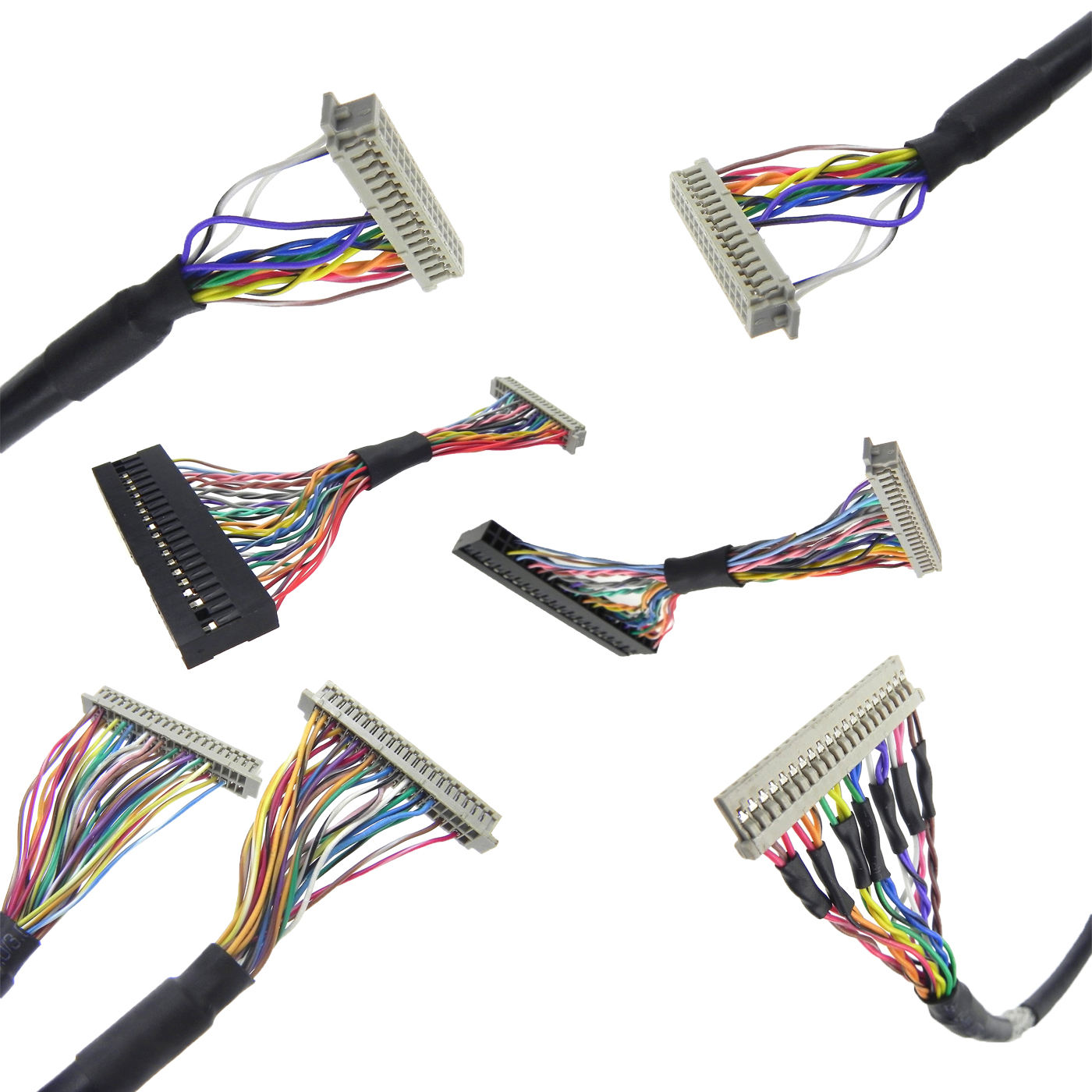

Solving EMI issues requires more than just wrapping a cable in basic foil. It demands precision-engineered custom LVDS display cables designed with exact twisted-pair geometries and multi-layered braided shields.

By utilizing advanced 3D routing simulations during the Design for Manufacturability (DFM) phase, we identify and eliminate EMI hotspots before a single wire is cut. We strictly control the impedance matching between the connector, the cable, and the PCB pads. This proactive, zero-tolerance approach ensures that your critical high-speed signals remain completely protected and crystal-clear, even in the most electrically hostile environments.

Shaving Weight and Saving Space

In modern consumer electronics, medical devices, and industrial HMIs, internal space is at a premium. Thick, rigid, off-the-shelf cables can make routing a nightmare, forcing awkward bends that further degrade signal integrity and add unnecessary bulk to your device.

We engineer ultra-flexible, high-density LVDS cable assemblies that can be routed through the tightest chassis constraints. By utilizing premium, thin-wall insulation materials and micro-coaxial technologies, we help OEMs reduce the overall weight and volume of their wiring. This gives your industrial designers the freedom they need to create sleeker, lighter products without compromising on performance.

From Rapid Prototypes to Zero-Defect Mass Production

Getting a single prototype to work on your lab bench is easy; maintaining that flawless signal integrity during a high-volume production run of 100,000 units is where most suppliers fail. A single poorly crimped terminal or a slightly shifted twist pitch can lead to a massive warranty recall that destroys your profit margins.

As an IATF 16949-certified manufacturer, we bring uncompromising discipline to every scale of production. Our automated assembly lines feature real-time testing and rigorous quality control, ensuring that the 50,000th LVDS cable is exactly as flawless as the first prototype. We bridge the gap between agile prototyping and high-volume precision, delivering custom cable assemblies in as little as 7 days for your urgent R&D needs.

Stop Guessing, Start Optimizing

Your display’s performance is only as good as the wiring behind it. Don’t let a cheap, standard cable be the weak link in your premium equipment. If you are tired of reworking assemblies due to bad signals and costly RMAs, it’s time to upgrade your supply chain.

---

Contact our engineering team today for a comprehensive, zero-obligation DFM review. Let us show you how to eliminate ghosting, crush EMI, and build a display product that truly stands the test of time.
