Empower Your Electronics: IDC Ribbon Cables for Seamless Connections

Product Overview

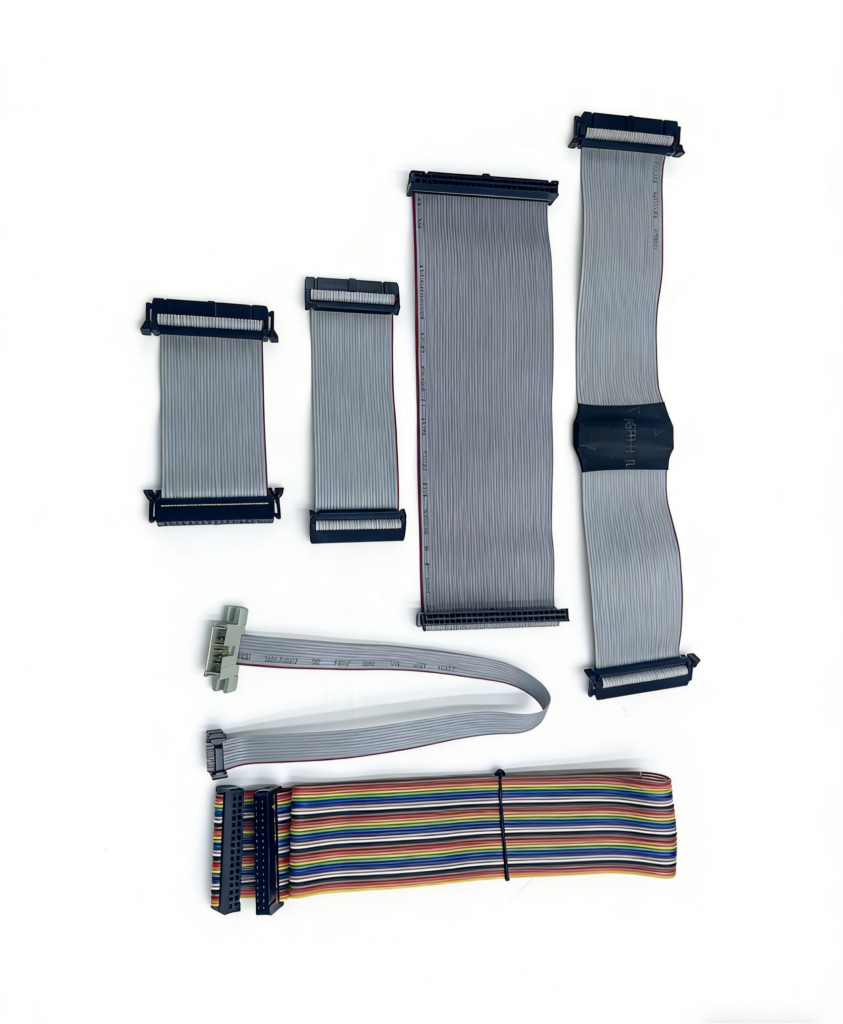

Our IDC ribbon cable assemblies are engineered for high-density, low-profile interconnects in compact electronic systems. Featuring precision-molded IDC connectors and flexible flat ribbon cables, these assemblies deliver stable signal integrity across a wide range of applications — from motherboards and industrial controllers to medical devices and consumer electronics. Available in multiple pin counts, lengths, and connector types (including DB9 serial, SATA-style, and standard 2.54mm pitch), our cables support both male-to-female and female-to-female configurations for maximum versatility.

Key Features

• High-Density Connectivity: Standard 2.54mm pitch IDC connectors ensure compatibility with most PCB headers and backplanes.
• Flexible & Durable Construction: Made from UL-rated PVC or TPE insulation, these cables resist bending, twisting, and environmental stress while maintaining consistent electrical performance.
• Wide Pin Count Range: From 6-pin to 64-pin configurations, supporting everything from simple sensor links to complex multi-channel data buses.
• Color-Coded Wiring Options: Rainbow-striped variants simplify troubleshooting and assembly; solid gray versions offer clean aesthetics for enclosed systems.
• Customizable Lengths & Terminations: Choose pre-assembled lengths or request custom cuts with specific connector orientations (straight, right-angle, or panel-mount).

Applications

• Motherboard & Expansion Card Interconnects
• Industrial Control Panels & PLC Systems
• Medical Imaging & Diagnostic Equipment
• Point-of-Sale Terminals & Printers
• Automotive Diagnostics & Telematics Modules
• Consumer Electronics (DVD Players, LCD TVs, Laptops)

Technical Specifications

• Conductor Material: Tinned copper (optional bare copper)
• Insulation: PVC / TPE / FEP (UL 2651 compliant)
• Operating Temperature: -40°C to +85°C
• Voltage Rating: 300V AC / DC
• Impedance: 100Ω ±15% (for differential pairs)
• Shielding Options: Unshielded / Foil-Shielded / Braided Shielded

Why Choose Our IDC Ribbon Cables?

Unlike generic alternatives, our cables undergo rigorous testing for crosstalk, impedance consistency, and mechanical endurance. Each batch is traceable via lot number, ensuring quality control from raw material to final assembly. Whether you need off-the-shelf solutions or fully customized harnesses, we provide fast turnaround and technical support to match your exact design requirements.
