L-Shaped Right Angle DC Plug Cable

PRODUCT PARAMETERS

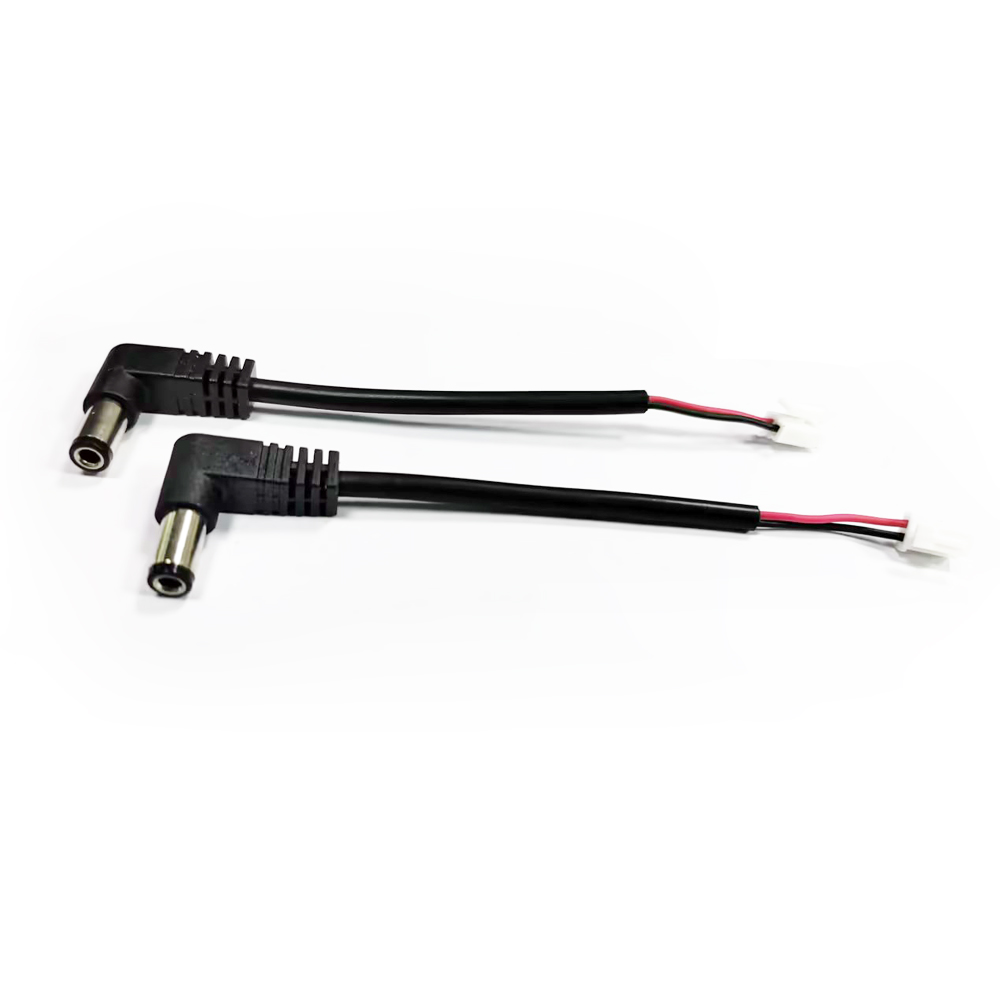

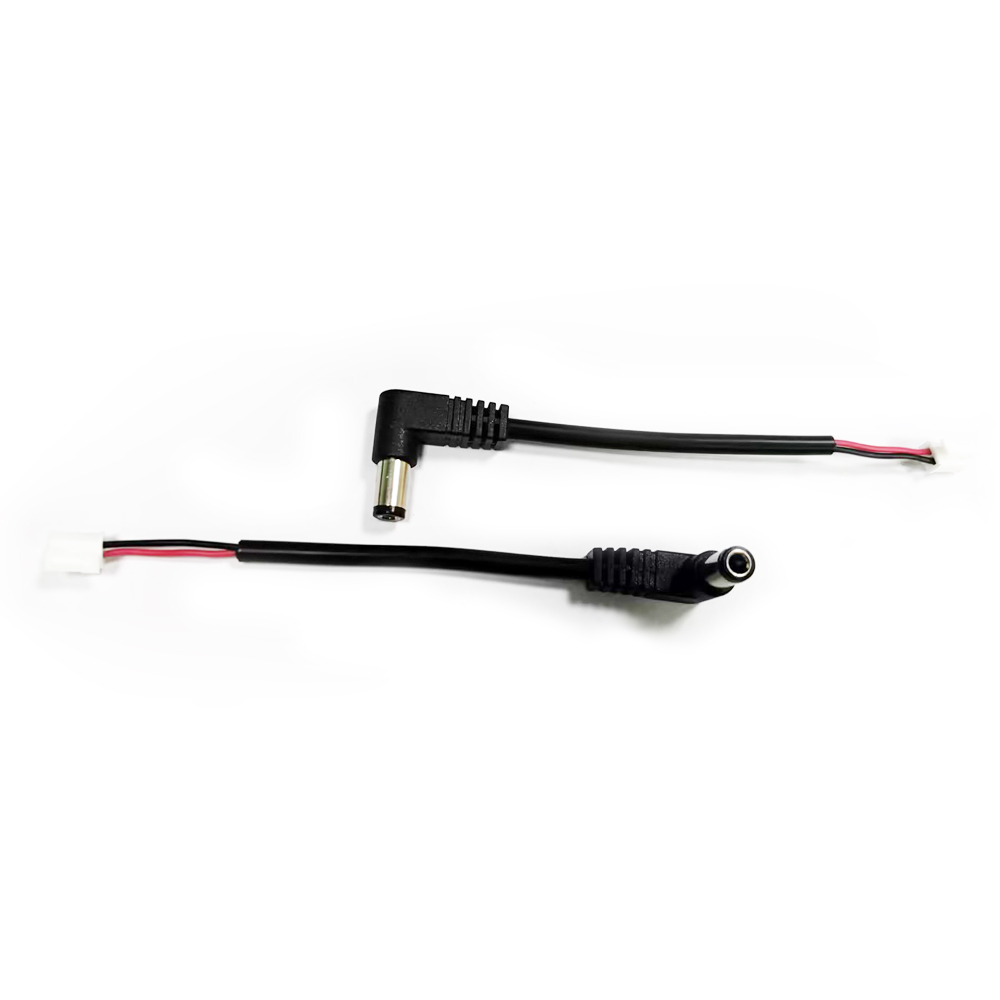

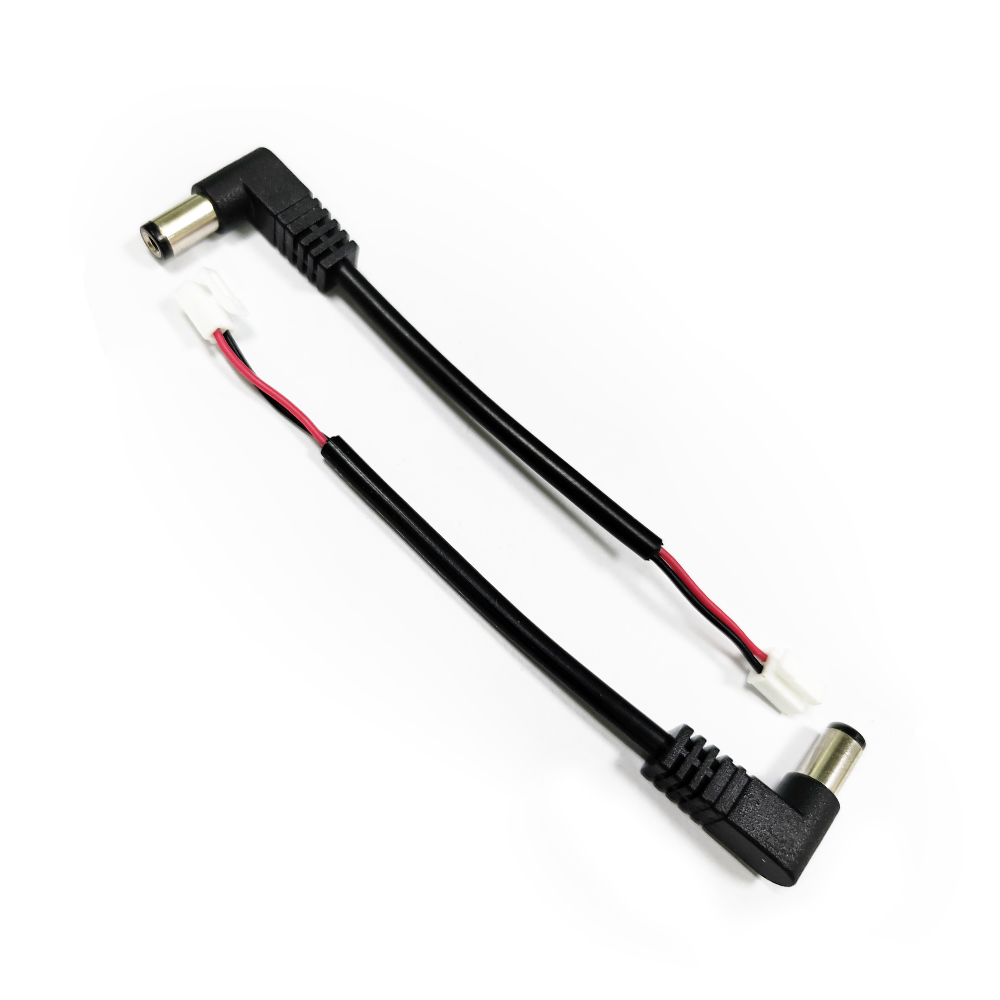

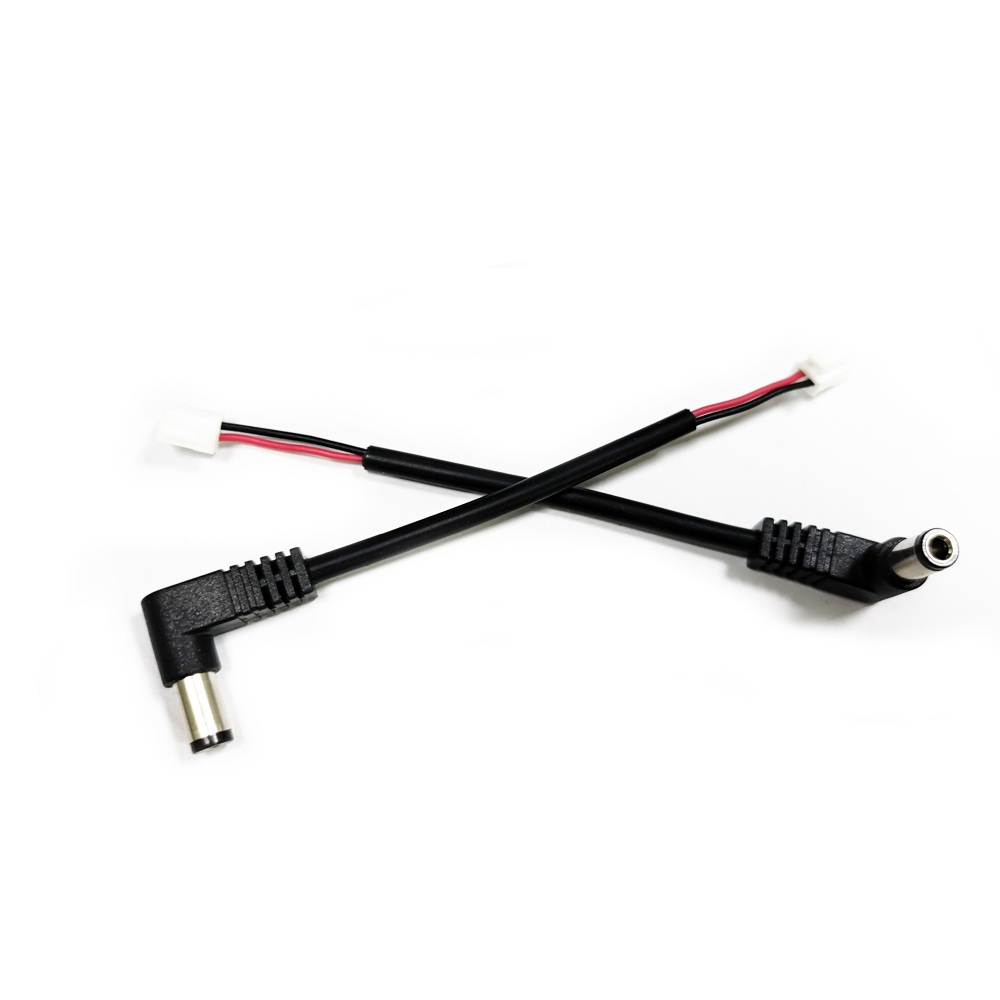

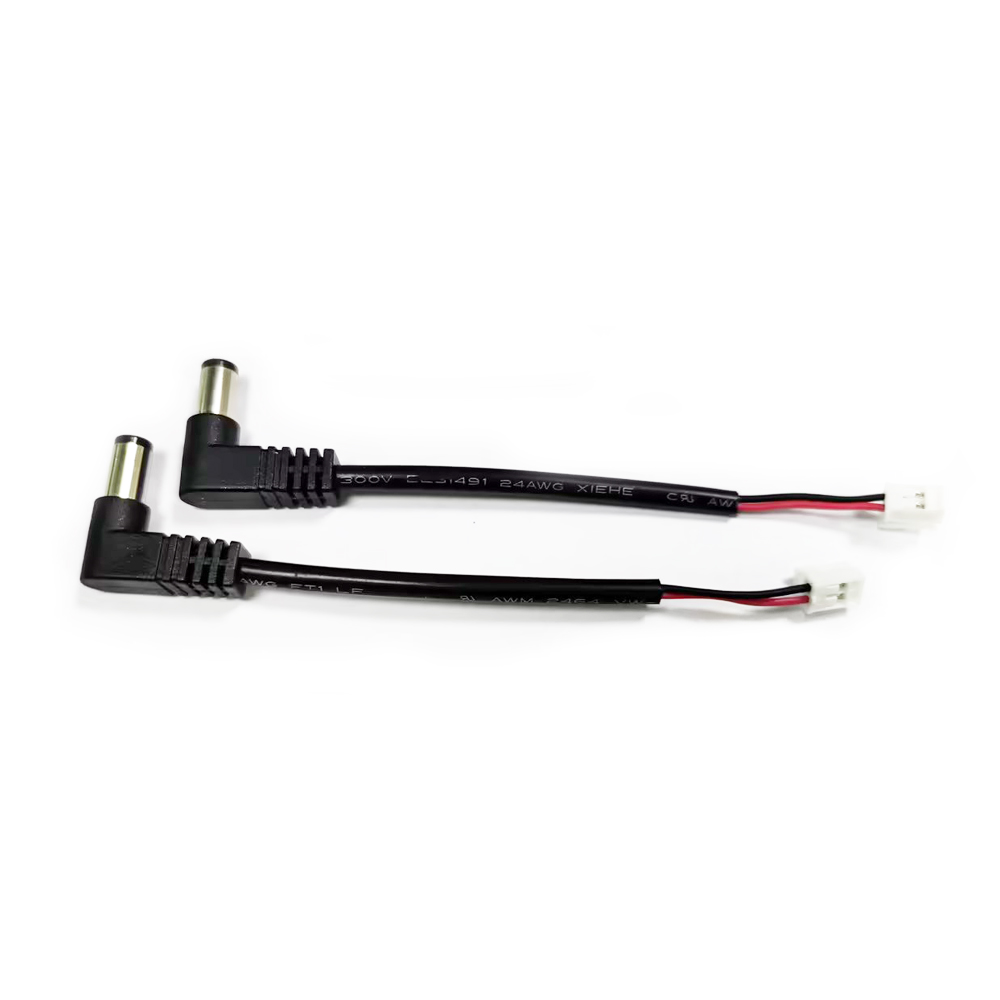

This is a 90-degree L-shaped right angle DC power jumper cable, constructed with 5.5*2.1mm DC male elbow plug on one end and 2P JST XH 2.54mm white plastic terminal connector on the other end, red&black polarity-marked wires for DC power connection, widely used for LED strips, surveillance cameras, small home appliances and DIY electronic wiring projects.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

【Product Features】

✅ 90° Right Angle DC Plug Design: L-shaped elbow DC male connector saves installation space, ideal for narrow enclosure wiring, avoids cable bending damage; standard common size: 5.5mm outer diameter ×2.1mm inner diameter DC plug (custom 5.52.5/3.51.35 available).
✅ Dual-end Termination: One side molded strain-relief DC plug with anti-break ribbed tail to prevent wire pull-off; another end pre-crimped with standard XH 2.54mm pitch 2Pin JST plug, plug-and-play without soldering.
✅ Clear Polarity Mark: Red wire=Positive(+), Black wire=Negative(-), eliminates wrong polarity connection risk; pure copper inner conductor ensures stable power transmission, low resistance & durable conductivity.
✅ Flexible PVC Jacket: Environmental PVC insulation wire is wear-resistant, anti-aging, flexible for routing inside device housings; customizable wire gauge(22AWG/24AWG/26AWG) & cable length as your requirement.

【Specifications】

DC Plug: Right Angle 90° Male DC, standard OD5.5×ID2.1mm (custom size supported)
Terminal Connector: XH2.54 2Pin JST white connector, pitch 2.54mm
Wire: Red+Black parallel electronic wire, customizable AWG & total length
Operating Temp: -20℃ ~ +80℃
Application Voltage: DC 3V/5V/9V/12V/24V low voltage power supply
