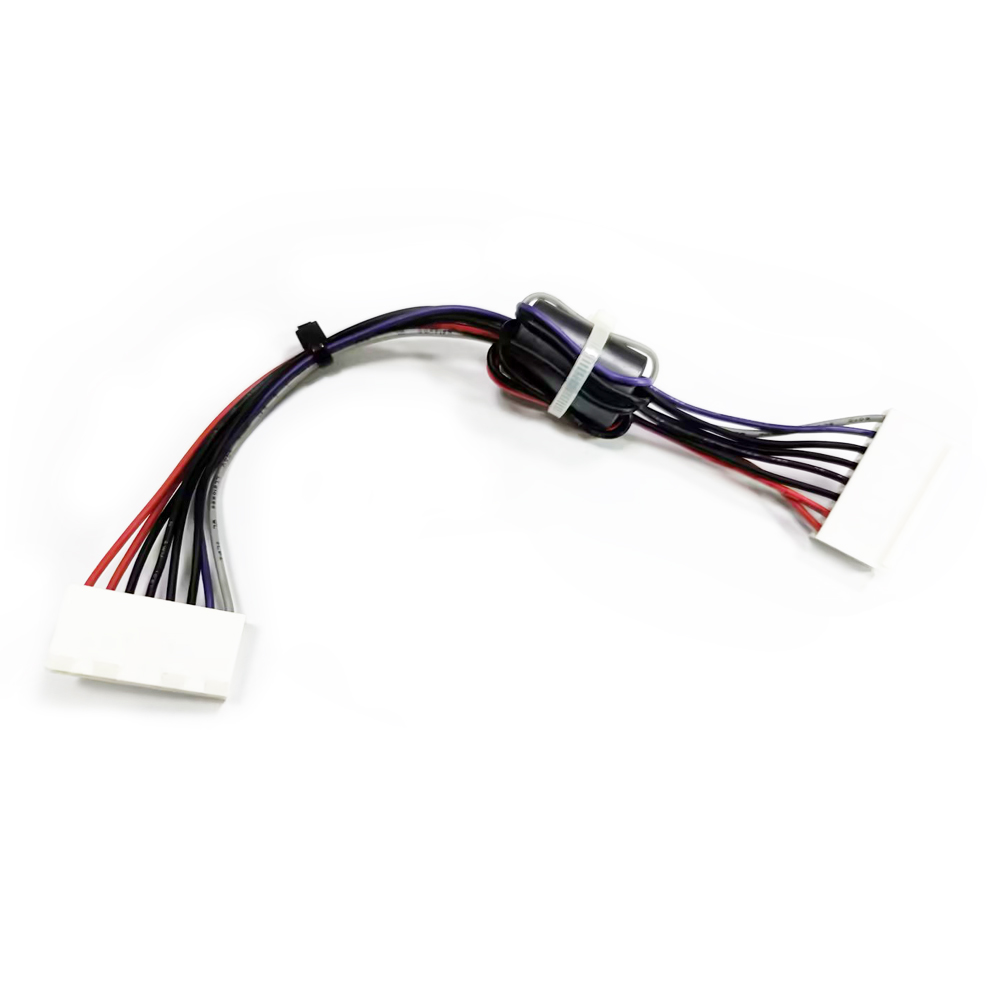

8P Tyco Connector Cable with Noise Suppression Ferrite Bead

Ferrite bead cable
Wire Harness with Ferrite Core

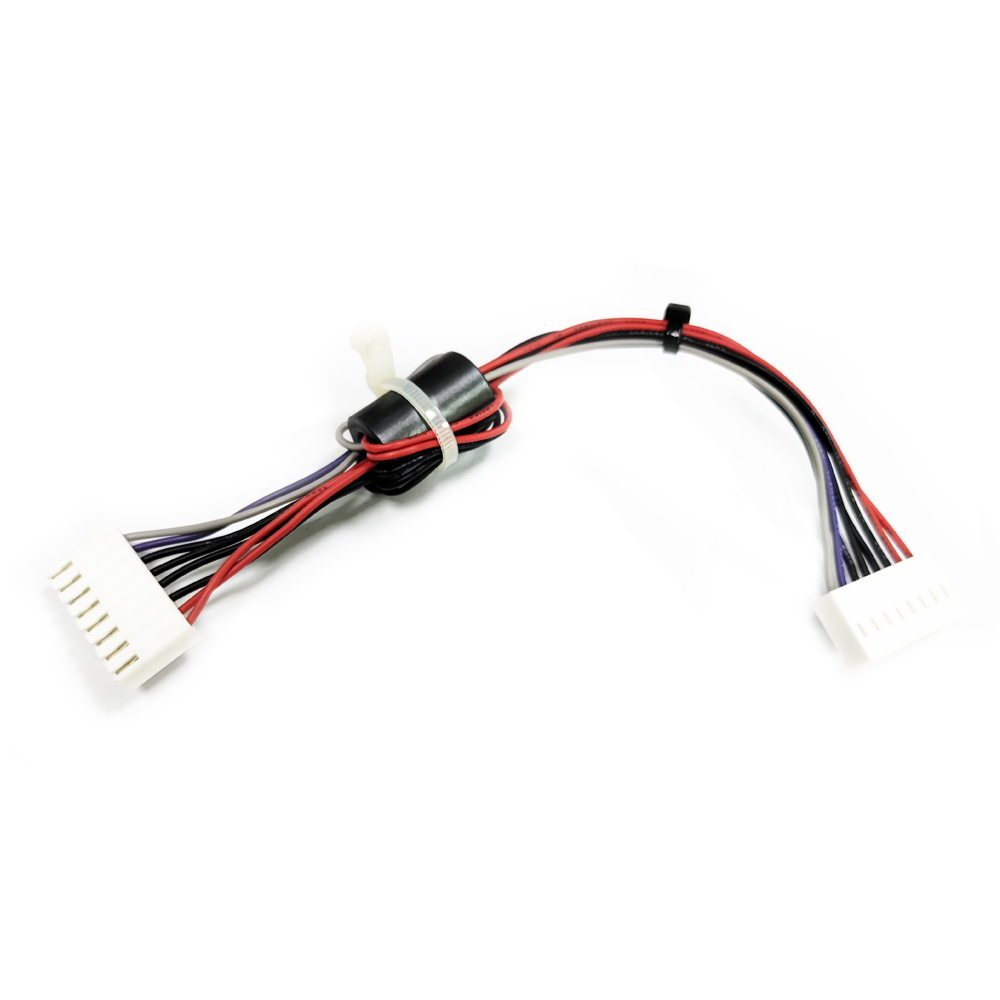

Ferrite bead cable
  1. Ferrite bead cable
  2. Wire Harness with Ferrite Core
  4. Ferrite bead cable

PRODUCT PARAMETERS

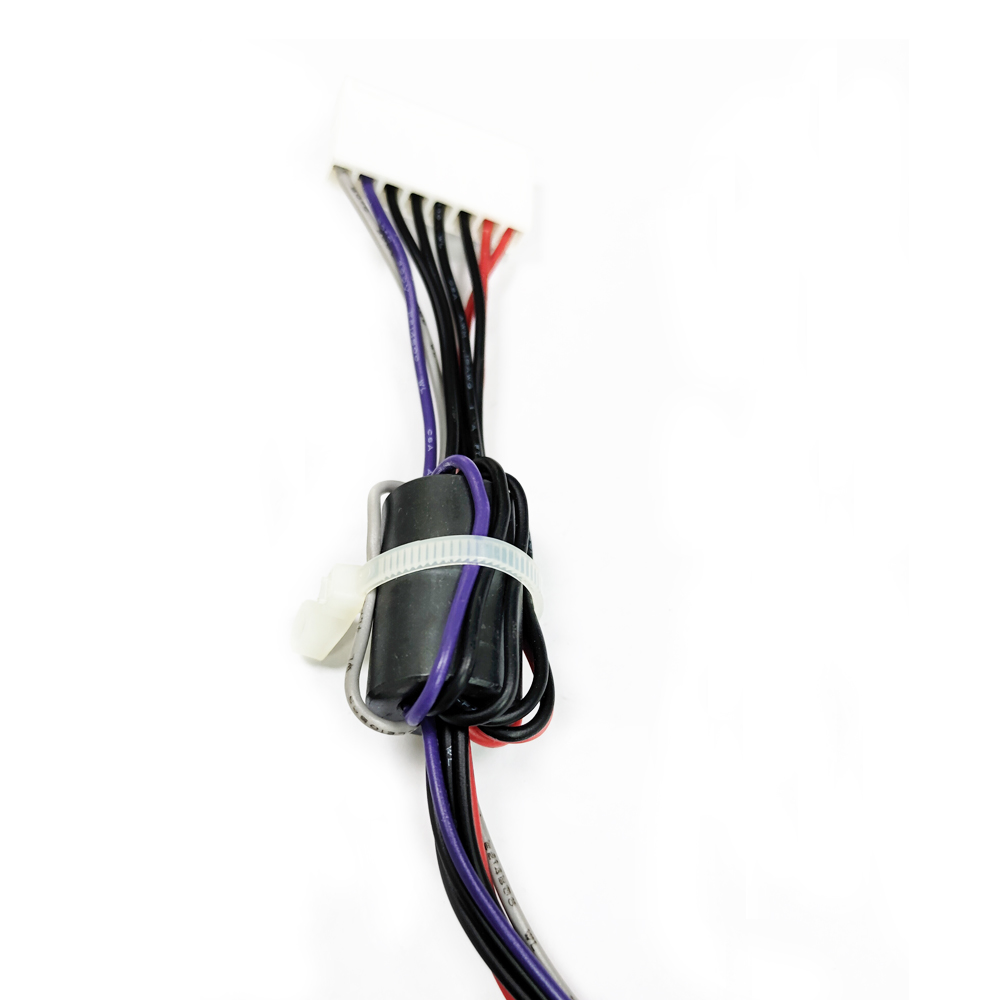

This is a custom 8-pin Tyco connector extension wiring harness, pre-assembled with multi-color insulated wires (red, black, purple, gray) for clear circuit identification. Equipped with a ferrite core choke wrapped on the cable, it effectively filters electromagnetic interference, reduces signal noise, and stabilizes power & data transmission for electronic devices. All terminals are fully crimped and securely locked into white plastic Tyco housings, offering plug-and-play connection, stable contact, and excellent anti-drop performance. Nylon cable ties are applied to organize wires neatly, preventing tangling during installation.
Description
FAQs
Request A Quote

Description

Key Features

  1. Connector: 10Pin JST XH Male Plug to 10Pin JST XH Female Socket, standard 2.54mm pitch
  2. Noise Reduction Design: Built-in ferrite core bead to suppress EMI/RFI interference
  3. Multi-Color Stranded Wire: Red/Black/Purple/Gray color-coded wiring for easy wiring & troubleshooting
  4. Durable Construction: Tightly crimped metal terminals, sturdy white plastic connector housing
  5. Neat Cable Management: Pre-tied nylon cable ties to keep wiring tidy
  6. Wide Compatibility: Ideal for internal wiring of monitors, industrial control boards, household appliances, battery packs, LED equipment, medical small electronics

Specifications

  • Connector Pitch: 2.54mm JST XH series
  • Pin Count: 10 Pin (10P)
  • Wire Type: Multi-color insulated stranded copper wire
  • Accessory: EMI suppression ferrite core, plastic cable zip ties
  • Connection Form: Male to Female extension jumper wire harness
  • Application: Internal power & signal wiring for consumer electronics, automation equipment, display screens, lithium battery modules

Application Scenarios

Perfect replacement & extension cable for LCD/LED display screens, industrial control circuit boards, smart home devices, lithium battery packs, testing equipment, small medical instruments, and other low-voltage signal & power transmission equipment.
