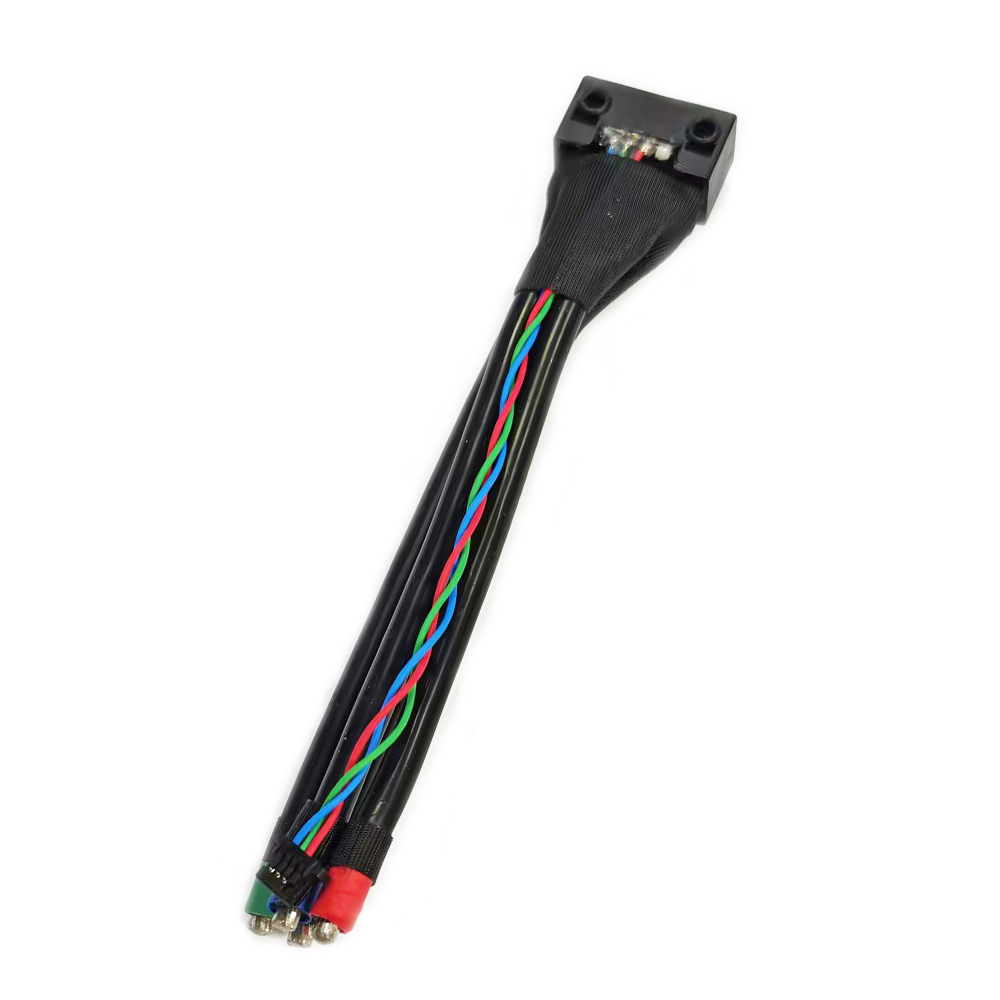

12-Pin Industrial-RGB Video Adapter Cable
PRODUCT PARAMETERS
Function & Application
The core function of this cable is to convert the 12-pin proprietary video interface of industrial control motherboards/equipment into standard RGB/VGA signals, for connecting industrial monitors, touch screens, security large screens and other devices.
- Comparison with consumer-grade VGA (15-pin): The industrial 12-pin interface is more compact with stronger anti-interference performance, specially designed for industrial control, medical, vehicle-mounted and other special scenarios.
- Key Design Logic:
- Twisted Pair for Interference Resistance: Twisted red/green/blue signals cancel out electromagnetic interference, solving signal interference issues caused by motors and frequency converters in industrial sites.
- Screw Holes for Fixation: Prevent interface loosening caused by equipment vibration, meeting the reliability requirements of industrial equipment.
- Braided Mesh Protection: Enhance the mechanical strength of the cable root and extend service life.
Supplementary Knowledge: Differences from Standard VGA Cable
| Feature | This 12-Pin Industrial Cable | Standard 15-Pin VGA Cable |
|---|---|---|
| Interface Specification | 12-pin (3×4) industrial proprietary | 15-pin (3×5) consumer-grade standard |
| Application Scenarios | Industrial PCs, industrial screens, medical equipment | Home computers, monitors, projectors |
| Anti-Interference Design | Twisted pair + shielded wire, industrial-grade anti-interference | Basic shielding, suitable for home environments |
| Fixation Method | With screw holes, anti-vibration loosening | Snap-on type, easy for home plugging/unplugging |
Common Usage Scenarios
- Connecting industrial PCs to industrial touch screens/monitors
- Video signal transmission for medical equipment (such as ultrasound machines, monitors)
- Display systems for vehicle-mounted/special vehicles
- RGB signal conversion for security monitoring large screens
Description
FAQs
Request A Quote
Description
1.1 Connector End (Left Side)
- 12-Pin Female Socket: A black plastic housing with 12 pin holes arranged in 3 rows × 4 columns, which is a proprietary video interface for industrial screens/industrial control motherboards (commonly found in industrial all-in-one computers, industrial PCs, medical/security display equipment). The 2 screw holes on the interface are used for anti-loosening fixation, ensuring stable connection in industrial environments.
- Soldering Area: The solder joints at the connection between the interface and the cable are wrapped with black braided mesh sleeving, which provides anti-pull, anti-bending, and insulation protection to prevent the cable root from breaking.
1.2 Cable End (Right Side)
- 3 Sets of Twisted Pair Wires: 1 set of red/green/blue twisted wires + 2 black shielded wires, with colored protective caps (red/green/blue/black) at the ends.
- Tri-color twisted wires: Corresponding to the red (R), green (G), blue (B) primary color analog signals of VGA/RGB video. The twisted pair design is for electromagnetic interference (EMI) resistance, ensuring signal stability in industrial environments and avoiding screen ripples or color distortion.
- Black shielded wires: Usually used for horizontal sync (HSYNC) and vertical sync (VSYNC) signals, or as ground shield wires, to synchronize screen timing and block interference.
- Cable Sheath: Black PVC outer jacket, wear-resistant and anti-aging, suitable for complex usage scenarios of industrial equipment.
FAQs
What types of products can we offer?
We have been supplying cable assembly solutions for almost any application since we launched. We engineer and produce cable assemblies to carry power, control signals, communications, date pulses or any combination of these, which including Green energy wire harness, Defence & Industry wire harness, Electrical wire harness, Automotive Wiring Harness, Custom wire harness etc.
What logistics do we ship through?
Customers can specify the freight forwarder. Usually sent by DHL, FedEx, UPS
Can it be customized as per our requirements?
We provide customized services. You can provide samples or technical parameters to help us draw drawings for you.
What is our ordering process?
Send Drawing / Requirements
Engineering Assistance—Since most of the cost decisions are made during the design phase, we can help you make component choices to limit future cost issues.
Rapid Prototyping (3-7Days)—Our teams will respond quickly and closely with you, your team, and your project to help you optimize the form, fit, and function of your harness or cable assembly. They will also make you aware of opportunities to reduce costs, while still achieving comparable or greater quality.
Sample Approval
Mass production
Quality Inspection & Delivery
Whether in terms of application, function, construction type, material selection or connection method, customized wiring harnesses can provide targeted solutions to meet special working environments and performance requirements.
