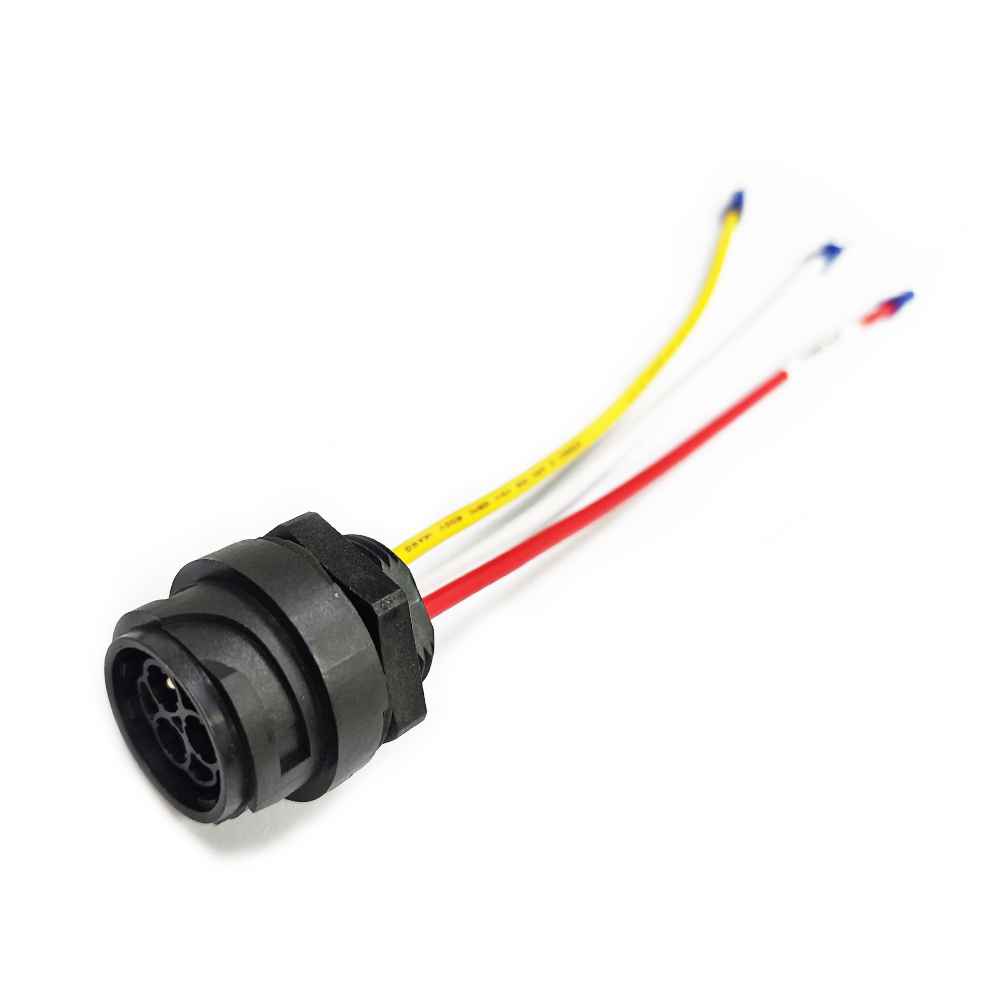

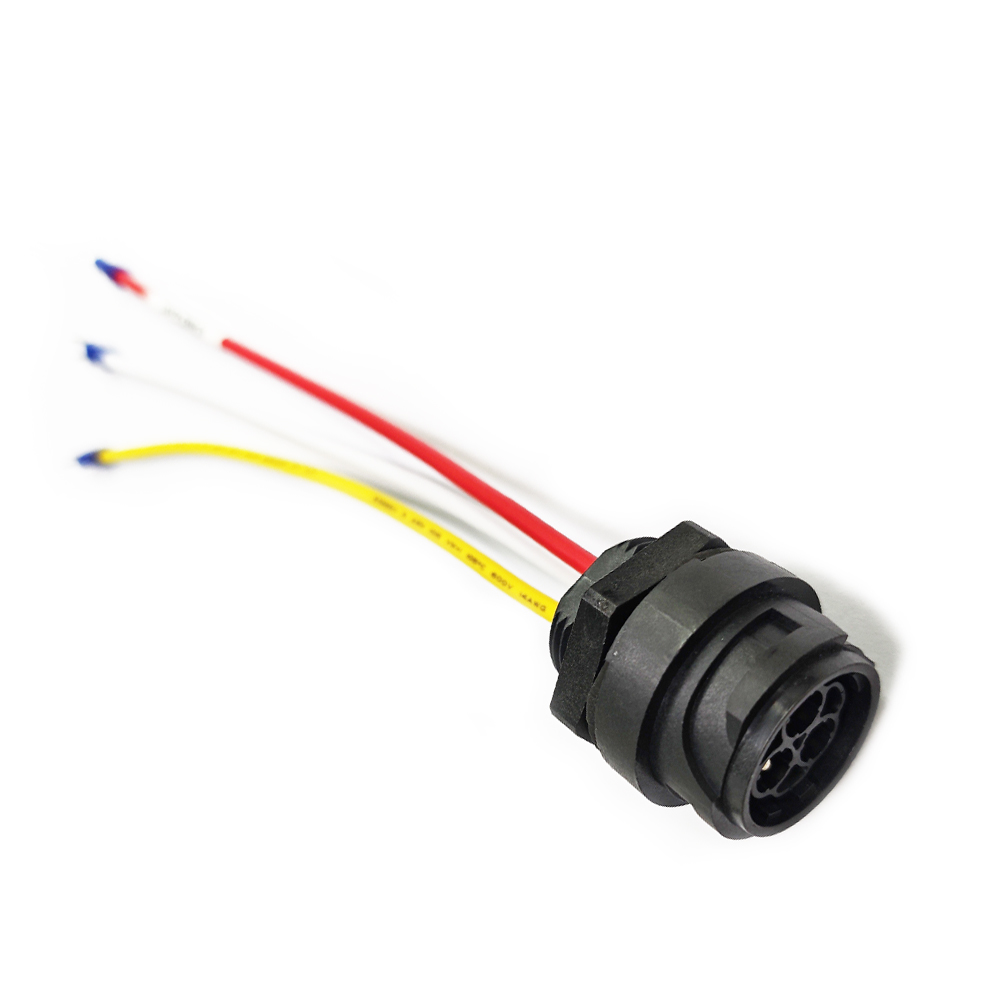

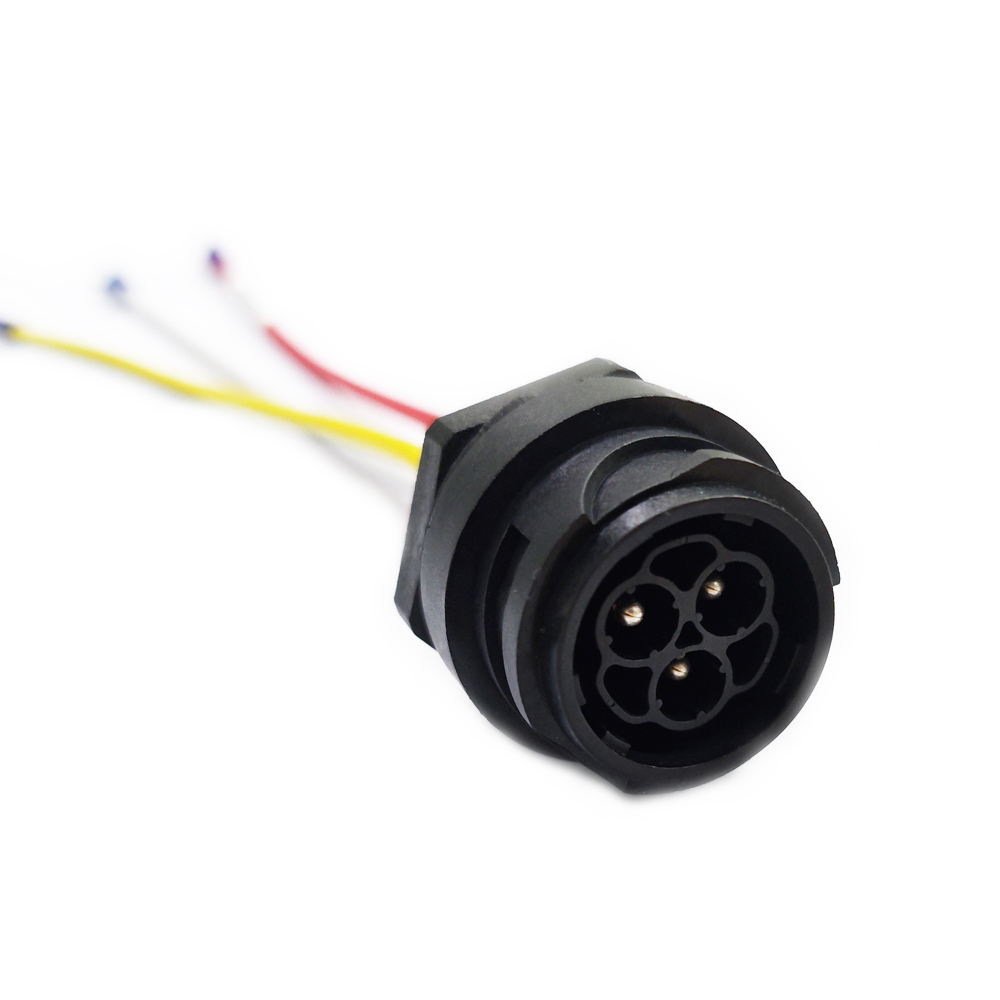

3-Pin Circular Waterproof Aviation Plug

PRODUCT PARAMETERS

This 3-core waterproof circular connector is a high-performance panel-mount aviation plug with pre-terminated wires, designed for reliable power and signal transmission in harsh environments. It features a rugged, IP-rated waterproof housing (typically IP67/IP68) that provides excellent protection against dust, moisture, and splashes, making it ideal for outdoor lighting, industrial equipment, and marine applications.

Feature	Details
Connector Type	3-Pin Circular Waterproof Aviation Plug (Female Socket)
Mounting Type	Panel Mount (Threaded)
Wire Count	3 Conductors (Red, Yellow, White)
Wire Termination	Spade/U-Type Fork Terminals
Housing Material	Black Engineering Plastic (Nylon/ABS)
Protection Rating	IP67 (or higher, depending on variant)
Rated Current/Voltage	Typically up to 10A / 300V (customizable)
Operating Temperature	-25°C to +85°C

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Key Features:

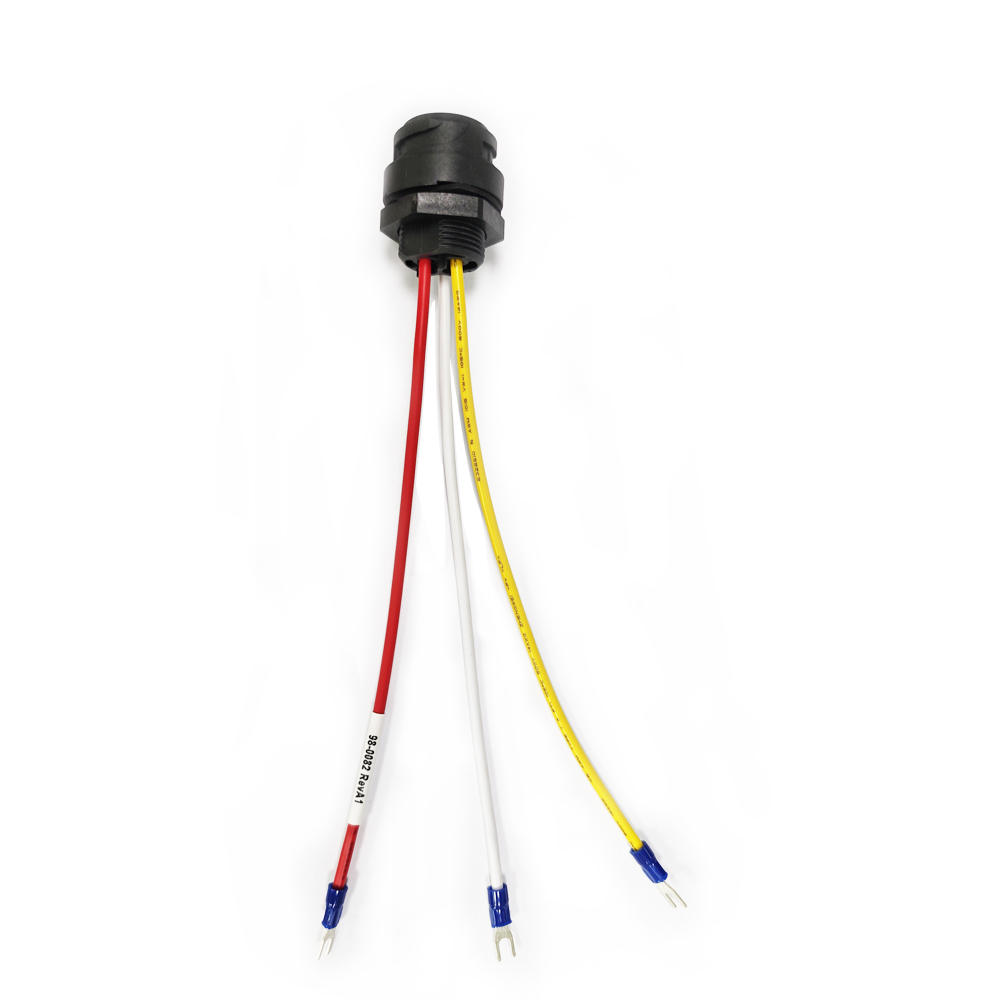

3-pin design: 3 conductors (red, yellow, white wires) with pre-crimped spade terminals for quick, and easy installation
Rugged construction: Durable black plastic housing with panel-mount threading for secure integration into enclosures or equipment
Waterproof & dustproof: Sealed connection prevents water and debris ingress, suitable for both indoor and outdoor use
Ready-to-use assembly: Factory-terminated wires eliminate the need for soldering or custom wiring on-site
Versatile compatibility: Works with various power/signal systems, including LED drivers, sensors, and small industrial machinery

Common Applications:

Outdoor LED lighting systems, industrial control equipment, marine electronics, solar power setups, electric vehicle accessories, and general-purpose waterproof electrical connections.

FAQs

What types of products can we offer?

What logistics do we ship through?

Can it be customized as per our requirements?

What is our ordering process?

Send Drawing / Requirements

Engineering Assistance—Since most of the cost decisions are made during the design phase, we can help you make component choices to limit future cost issues.

Rapid Prototyping (3-7Days)—Our teams will respond quickly and closely with you, your team, and your project to help you optimize the form, fit, and function of your harness or cable assembly. They will also make you aware of opportunities to reduce costs, while still achieving comparable or greater quality.

Sample Approval

Mass production

Quality Inspection & Delivery

Whether in terms of application, function, construction type, material selection or connection method, customized wiring harnesses can provide targeted solutions to meet special working environments and performance requirements.
